基于单片机的贪吃蛇游戏设计 -

利用三天假期把贪吃蛇游戏移植到了我的单片机开发板上，单片机是STC89C52只有8K的FLASH，本来想移植俄罗斯方块的但是移植编译之后大约有10K的空间。

本文引用地址: http://www.21ic.com/app/mcu/201807/782966.htm

下面是我拍的视频，优酷的链接：http://v.youku.com/v_show/id_XNjIxNjM2MzUy.html高手勿喷呐！

程序中使用的器件有：

　　（1）STC82C52配置有片内RAM512B，片内FLASH存储器 8KB，时钟为8MHz。

　　（2）2.4寸TFT彩屏，最大支持RGB565格式有65536种颜色。主控制器为ILI9325，程序中使用的是8位数据模式，所以运行比较慢。

　　（3）红外遥控器，采用的是HS0038芯片。红外协议是NEC协议，32位数据位，第一字节为标识码，第二字节为其反码，第三字节为数据位，第四字节为数据位反码。

　　下面是我的程序：

　　　　lcd.c是TFT液晶屏的驱动程序，key.c是红外芯片的驱动程序，snake.c是贪吃蛇游戏的程序。lcd.h,key.h以及snake.h是对应的头文件，里面有一部分与平台相关的定义

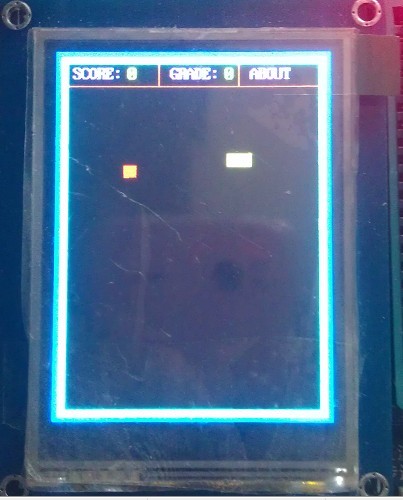

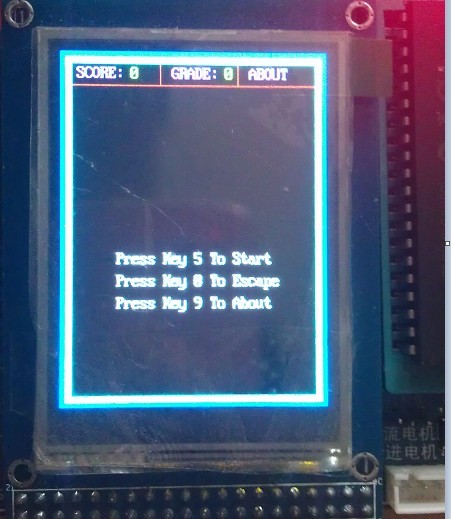

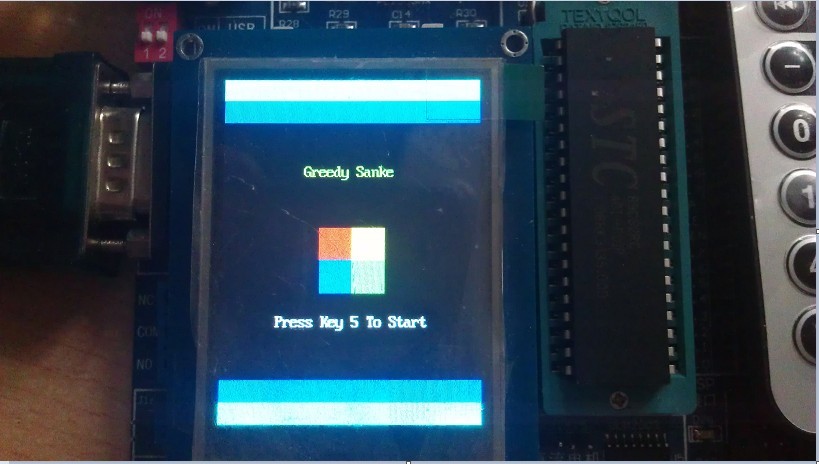

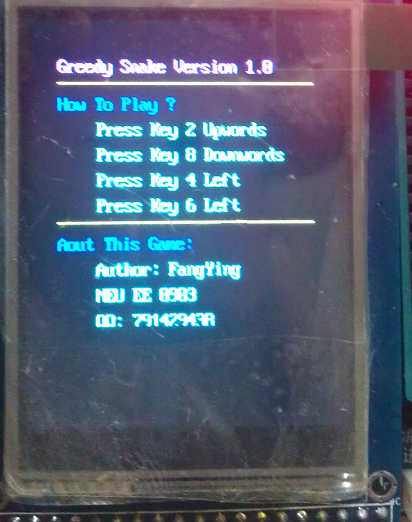

移植的时候只要做对应的修改即可。下面上一下游戏的界面：

下面开始贴源代码啦：

　　　　第一代码，lcd.c是TFT彩屏ILI9325的驱动程序。

#include "lcd.h"

#include "fonts_ascii8x16.h"

#include

/* 不精确的延时函数 */

void Delayms(int count)

{

int i,j;

for(i=0;i

for(j=0;j<100;j++);

}

/* 并行数据写入函数,分高低字节写入*/

void LCD_WriteBus(char DataHigh,char DataoLow)

{

LCD_DataPortH = DataHigh;

LCD_WR_L

LCD_WR_H

LCD_DataPortH = DataoLow;

LCD_WR_L

LCD_WR_H

}

/* 写命令字 */

void LCD_WriteCmd(char DataHigh,char DataoLow)

{

LCD_RS_L

LCD_CS_L

LCD_WriteBus(DataHigh,DataoLow);

LCD_RS_H

LCD_CS_H

}

/* 写数据 */

void LCD_WriteData(char DataHigh,char DataoLow)

{

LCD_CS_L

LCD_RS_H

LCD_WriteBus(DataHigh,DataoLow);

LCD_CS_H

}

/*往指定寄存器写入数据 */

void LCD_WriteReg(unsigned int Register,unsigned int Data)

{

LCD_WriteCmd(Register>>8, Register);

LCD_WriteData(Data>>8, Data);

}

/* 设置绘图坐标窗口,其中(x1,y1)为左上顶点，(x2,y2)为右下顶点 */

void LCD_SetWindow(unsigned int x1,unsigned int y1,unsigned int x2,unsigned int y2)

{

/* 设置显示的矩形区域 */

LCD_WriteCmd(0x00,0x50);LCD_WriteData(x1>>8,x1); //开始X

LCD_WriteCmd(0x00,0x52);LCD_WriteData(y1>>8,y1); //开始Y

LCD_WriteCmd(0x00,0x51);LCD_WriteData(x2>>8,x2); //结束X

LCD_WriteCmd(0x00,0x53);LCD_WriteData(y2>>8,y2); //结束Y

/* 设置矩形绘图区域的起始点 */

LCD_WriteCmd(0x00,0x20);LCD_WriteData(x1>>8,x1); //设置X绘图起始坐标位置

LCD_WriteCmd(0x00,0x21);LCD_WriteData(y1>>8,y1); //设置Y绘图起始坐标位置

LCD_WriteCmd(0x00,0x22);

}

/* 初始化LCD，写入工作模式相关命令字*/

void LCD_Init(void)

{

LCD_RST_H

Delayms(5);

LCD_RST_L

Delayms(5);

LCD_RST_H

LCD_CS_H

LCD_RD_H

LCD_WR_H

Delayms(5);

LCD_CS_L /*打开片选使能*/

//************* Start Initial Sequence **********//

LCD_WriteCmd(0x00,0xE5); LCD_WriteData(0x78,0xF0); // set SRAM internal timing

LCD_WriteCmd(0x00,0x01); LCD_WriteData(0x01,0x00); // set SS and SM bit

LCD_WriteCmd(0x00,0x02); LCD_WriteData(0x07,0x00); // set 1 line inversion

LCD_WriteCmd(0x00,0x03); LCD_WriteData(0x10,0x30); // set GRAM write direction and BGR=1.

LCD_WriteCmd(0x00,0x04); LCD_WriteData(0x00,0x00); // Resize register

LCD_WriteCmd(0x00,0x08); LCD_WriteData(0x02,0x07); // set the back porch and front porch

LCD_WriteCmd(0x00,0x09); LCD_WriteData(0x00,0x00); // set non-display area refresh cycle ISC[3:0]

LCD_WriteCmd(0x00,0x0A); LCD_WriteData(0x00,0x00); // FMARK function

LCD_WriteCmd(0x00,0x0C); LCD_WriteData(0x00,0x00); // RGB interface setting

LCD_WriteCmd(0x00,0x0D); LCD_WriteData(0x00,0x00); // Frame marker Position

LCD_WriteCmd(0x00,0x0F); LCD_WriteData(0x00,0x00); // RGB interface polarity

//*************Power On sequence ****************//

LCD_WriteCmd(0x00,0x10); LCD_WriteData(0x00,0x00); // SAP, BT[3:0], AP, DSTB, SLP, STB

LCD_WriteCmd(0x00,0x11); LCD_WriteData(0x00,0x07); // DC1[2:0], DC0[2:0], VC[2:0]

LCD_WriteCmd(0x00,0x12); LCD_WriteData(0x00,0x00); // VREG1OUT voltage

LCD_WriteCmd(0x00,0x13); LCD_WriteData(0x00,0x00); // VDV[4:0] for VCOM amplitude

LCD_WriteCmd(0x00,0x07); LCD_WriteData(0x00,0x01);

Delayms(50); // Dis-charge capacitor power voltage

LCD_WriteCmd(0x00,0x10); LCD_WriteData(0x10,0x90); // 1490//SAP, BT[3:0], AP, DSTB, SLP, STB

LCD_WriteCmd(0x00,0x11); LCD_WriteData(0x02,0x27); // DC1[2:0], DC0[2:0], VC[2:0]

Delayms(50); // Delay 50ms

LCD_WriteCmd(0x00,0x12); LCD_WriteData(0x00,0x1F); //001C// Internal reference voltage= Vci;

Delayms(50); // Delay 50ms

LCD_WriteCmd(0x00,0x13); LCD_WriteData(0x15,0x00); //0x1000//1400 Set VDV[4:0] for VCOM amplitude 1A00

LCD_WriteCmd(0x00,0x29); LCD_WriteData(0x00,0x27); //0x0012 //001a Set VCM[5:0] for VCOMH //0x0025 0034

LCD_WriteCmd(0x00,0x2B); LCD_WriteData(0x00,0x0D); // Set Frame Rate 000C

Delayms(50); // Delay 50ms

LCD_WriteCmd(0x00,0x20); LCD_WriteData(0x00,0x00); // GRAM horizontal Address

LCD_WriteCmd(0x00,0x21); LCD_WriteData(0x00,0x00); // GRAM Vertical Address

// ----------- Adjust the Gamma Curve ----------//

LCD_WriteCmd(0x00,0x30); LCD_WriteData(0x00,0x00);

LCD_WriteCmd(0x00,0x31); LCD_WriteData(0x07,0x07);

LCD_WriteCmd(0x00,0x32); LCD_WriteData(0x03,0x07);

LCD_WriteCmd(0x00,0x35); LCD_WriteData(0x02,0x00);

LCD_WriteCmd(0x00,0x36); LCD_WriteData(0x00,0x08);//0207

LCD_WriteCmd(0x00,0x37); LCD_WriteData(0x00,0x04);//0306

LCD_WriteCmd(0x00,0x38); LCD_WriteData(0x00,0x00);//0102

LCD_WriteCmd(0x00,0x39); LCD_WriteData(0x07,0x07);//0707

LCD_WriteCmd(0x00,0x3C); LCD_WriteData(0x00,0x02);//0702

LCD_WriteCmd(0x00,0x3D); LCD_WriteData(0x1D,0x04);//1604

/*------------------ Set GRAM area ---------------*/

LCD_WriteCmd(0x00,0x50); LCD_WriteData(0x00,0x00); // Horizontal GRAM Start Address

LCD_WriteCmd(0x00,0x51); LCD_WriteData(0x00,0xEF); // Horizontal GRAM End Address

LCD_WriteCmd(0x00,0x52); LCD_WriteData(0x00,0x00); // Vertical GRAM Start Address

LCD_WriteCmd(0x00,0x53); LCD_WriteData(0x01,0x3F); // Vertical GRAM Start Address

LCD_WriteCmd(0x00,0x60); LCD_WriteData(0xA7,0x00); // Gate Scan Line

LCD_WriteCmd(0x00,0x61); LCD_WriteData(0x00,0x01); // NDL,DataoLowE, REV

LCD_WriteCmd(0x00,0x6A); LCD_WriteData(0x00,0x00); // set scrolling line

/*-------------- Partial Display Control ---------*/

LCD_WriteCmd(0x00,0x80); LCD_WriteData(0x00,0x00);

LCD_WriteCmd(0x00,0x81); LCD_WriteData(0x00,0x00);

LCD_WriteCmd(0x00,0x82); LCD_WriteData(0x00,0x00);

LCD_WriteCmd(0x00,0x83); LCD_WriteData(0x00,0x00);
