基于ADuM6202的5KV隔离双路DC电源转换技术 - 模拟电源 -

ADuM6200/ADuM6201/ADuM62021是5KV隔离的双路DC/DC电源转换器和隔离器,包括了两路数字隔离器iCoupler和两路DC/DC转换器isoPower,5.0V输入时可提供绝缘输出5.0V或3.3V,功率高达400W,信号隔离是DC到25MHz(NRZ),主要用在RS-232/RS-422/RS-485收发器,工业现场总线隔离,电源起动偏压和栅极驱动,隔离的传感器接口以及工业PLC等。

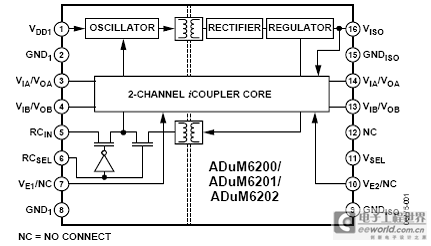

图1.ADuM6200/ADuM6201/ADuM62021功能方框图

EVAL-ADuMQSEBZ评估板

The EVAL-ADuMQSEBZ can be used with most Coupler isolation products in the 16-lead, wide-body SOIC and QSOP packages. The evaluation board supports the common pad positions for power, ground, and I/O pins found in nearly all of the Coupler products and is a configurable board that can be adapted to many Coupler products.

EVAL-ADuMQSEBZ评估板主要特性:

Convenient connections for power through screw terminal blocks

Add-on BNC connector for 50 Ω signal sources

On-board signal routing

Support for signal wrap back

Simple signal paths to reduce transmission line effects

Pull-up and pull-down provided for control lines

Support for isoPower

Project area that supports surface-mount and through-hole devices

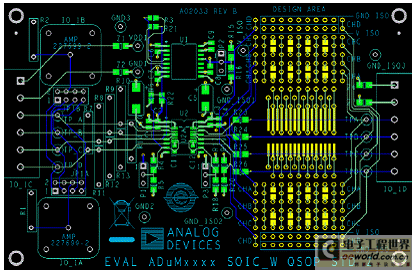

图3.EVAL-ADuMQSEBZ评估板外形图

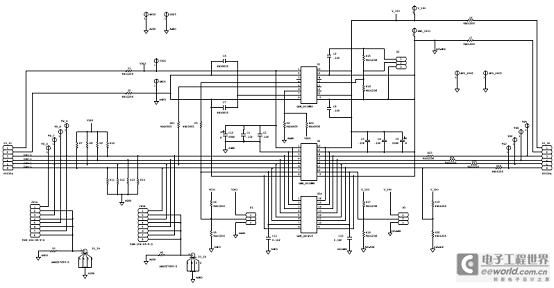

图4.EVAL-ADuMQSEBZ评估板电路图

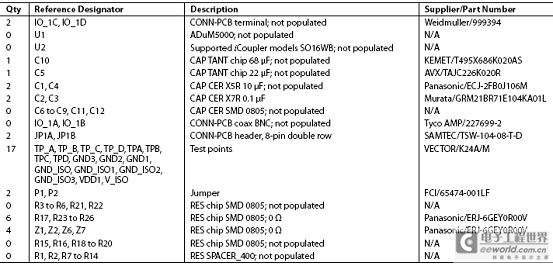

EVAL-ADuMQSEBZ评估板材料清单(BOM):



图5.EVAL-ADuMQSEBZ评估板布局图
