SN75LVCP412A应用电路 - 模拟电源 -
来源： 网络用户发布，如有版权联系网管删除 2018-09-23
Two Channel SATA 3-Gbps Redriver

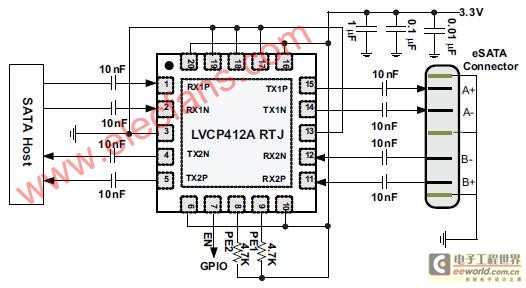

DEVICE IMPLEMENTATION SN75LVCP412Adatasheet,pdf
A. Place supply capacitors close to the pin.
B. EN can be left open or tied to supply when no external control is implemented.
C. Output pre-emphasis (PE1, PE2) is shown enabled. Setting depends on device palcement relative to eSATA connector.
