基于CS1500设计的90W高效PFC电源技术 - 模拟电源 -

电源和照明镇流器设计.
Digital Power Factor Correction IC

The CS1500 is a high-performance power factor correction (PFC) controller for universal AC input, which uses a proprietary digital algorithm for discontinuous conduction mode (DCM) with variable on-time and variable frequency control, ensuring unity power factor.

The CS1500 incorporates all the safety features necessary for robust and compact PFC stages. In addition, it has burst mode control to lower the light-load/standby losses to a minimum.

Protection features such as overvoltage, overcurrent, overpower, open- and short-circuit protection, overtemperature, and brownout help protect the device during abnormal transient conditions.

The digital controller optimizes the system stability and transient performance, simplifies the PFC design, reduces the external component count and BOM costs. The simple design and minimum cost makes CS1500 the ideal choice for PFC up to 300 watts.

CS1500主要特性:

Digital EMI Noise Shaping

Excellent Efficiency Under All Load Conditions

Minimal External Devices Required

Optimized Digital Loop Compensation

Comprehensive Safety Features

Undervoltage Lockout (UVLO)

Output Overvoltage Protection

Input Current Limiting

Output Overpower Protection

Input Brownout Protection

Open/short Loop Protection for IAC & FB Pins

Thermal Shutdown

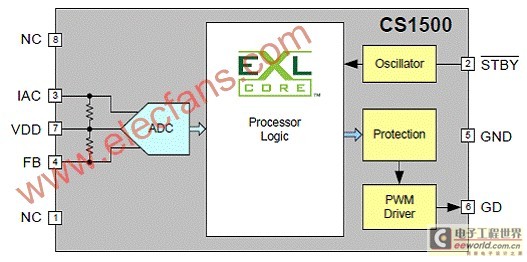

图1.CS1500方框图

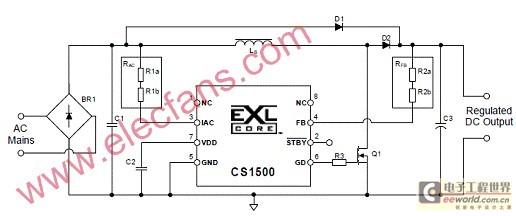

图2.CS1500基本应用电路图

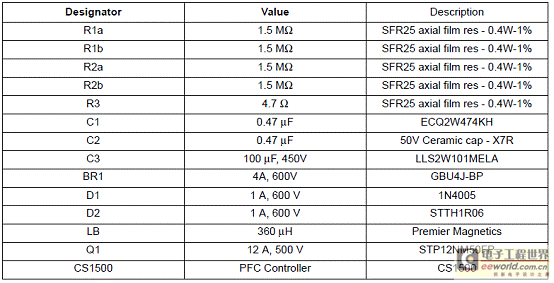

应用电路中元件数值表:

90W高效PFC LLC谐振转换器参考设计

CS1500 90W, High-efficiency PFC w/ LLC Resonant Converter Reference Design

The CRD1500-90WLLC circuit has two stages: a digitally controlled front-end PFC and a resonant LLC converter. The CS1500 is a high-performance power factor correction (PFC) controller for universal AC input that uses a proprietary digital algorithm with variable ontime, variable frequency, & DCM, which ensures unity power factor.

The resonant LLC converter uses the L6599A controller in the second stage.

90W高效转换器参考设计主要特性:

Universal Input

– Mains Range: 90~265 VAC

– Line Frequency: 45~65 Hz

Rated Output Specification: 19 V, 90 W

EN6100-3-2 Class-D Compliance

Efficiency: 91% @ 90 W, 230 VAC

Low No-load Power Dissipation

Low PFC Component Count

Board Dimension: 61 mm x 135 mm

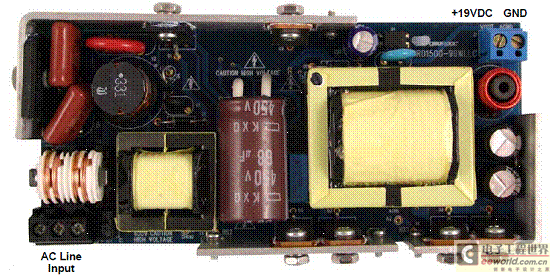

图3.90W高效PFC LLC谐振转换器参考设计外形图

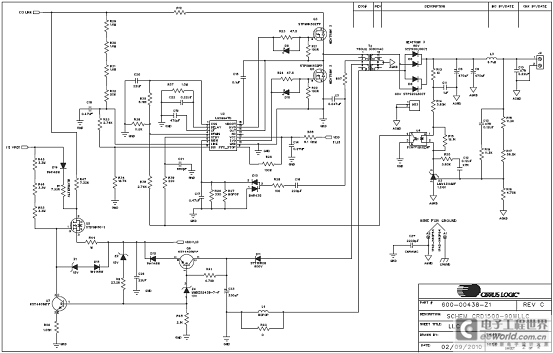

图4.参考设计电路图(1)

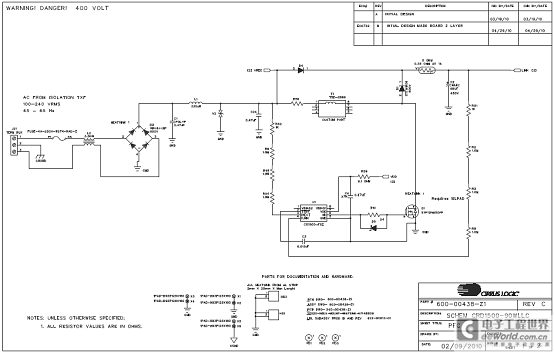

图5.参考设计电路图(2)

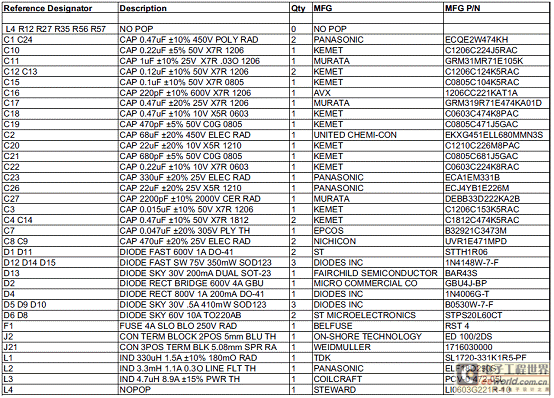

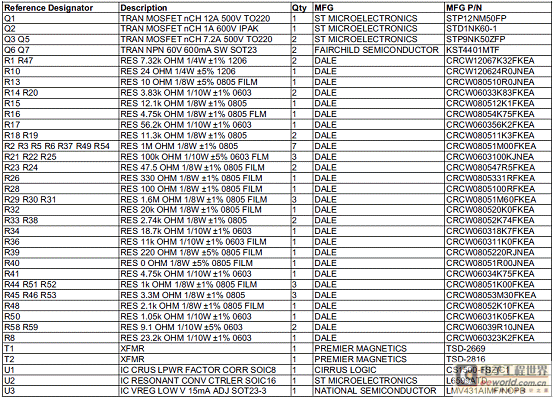

参考设计材料清单(BOM):
