ADC0809转换程序 -

程序框图

本文引用地址: http://www.21ic.com/app/mcu/201806/760950.htm

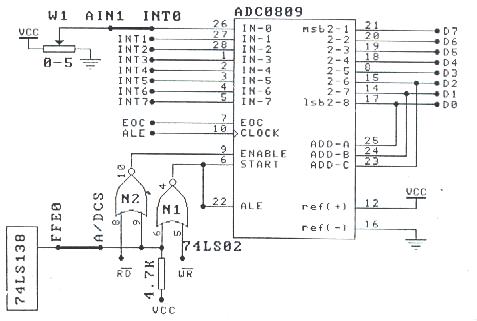

电路

程序

ORG 05A0H

05A0 758153 SE11:MOV SP,#53H

05A3 757E00 MOV 7EH,#00H

05A6 757D08 MOV 7DH,#08H

05A9 757C00 MOV 7CH,#00H

05AC 757B09 MOV 7BH,#09H

05AF 757A10 MOV 7AH,#10H

05B2 757910 MOV 79H,#10H ;显示缓冲区初值

05B5 120425 LO18:LCALLDIS ;显示

05B8 7400 MOV A, #00H

05BA 90FFE0 MOV DPTR,#0FFE0H

05BD F0 MOVX@DPTR,A ;0809的0通道采样

05BE 120425 LCALLDIS

05C1 E0 MOVXA,@DPTR ;取出采样值

05C2 7879 MOV R0,#79H

05C4 120077 LCALLPTDS ;采样值送显示缓冲区

05C7 80EC SJMPLO18 ;循环

ORG 0077H

0077 F9 PTDS: MOV R1,A ;拆送显示缓冲区

0078 117C ACALLPTDS1

007A E9 MOV A,R1

007B C4 SWAPA

007C 540F PTDS1:ANL A, #0FH

007E F6 MOV @R0,A

007F 08 INC R0

0080 22 RET

ORG 0425H

0425 C083 DIS: PUSHDPH

0427 C082 PUSHDPL

0429 D2D4 SETBRS1

042B 787E MOV R0,#7EH

042D 7A20 MOV R2,#20H

042F 7B00 MOV R3,#00H

0431 90044F MOV DPTR, #LS0

0434 E6 LS2: MOV A,@R0

0435 93 MOVCA,@A+DPTR

0436 79DC MOVXR1, #0DCH

0439 EA MOV A,R2

043A 09 INC R1

043B F3 MOVX@R1,A

043C DBFE LS1: DJNZR3, LS1

043E C3 CLR C

043F 13 RRC A

0440 FA MOV R2,A

0441 18 DEC R0

0442 70F0 JNZ LS2

0444 F2 MOVX@R0,A

0445 18 DEC R0

0446 F4 CPL A

0447 F2 MOVX@R0,A

0448 C2D4 CLR RS1

044A D082 POP DPL

044C D083 POP DPH

044E 22 RET

044F C0F9A4LS0: DB0C0H, 0F9H,0A4H, 0B0H, 99H, 92H；字形表

0452 B09992

0455 82F880 DB82H, 0F8H, 80H, 90H, 88H, 83H, 0C6H

0458 908883

045B C6

045C A1868E DB0A1H, 86H, 8EH, 0FFH, 0CH, 89H, 7FH, 0BFH

045F FF0C89

0462 7FBF
