RT9505应用电路及参数资料

Linear Single Cell Li-Ion Battery Charger IC

Features

18V Maximum Rating for AC Adapter
Internal Integrate P-MOSFETs
AC Adapter Power Good Status Indicator
Charge Status Indicator
Under Voltage Protection
Over Voltage Protection
Automatic Recharge Feature
Battery Temperature Monitoring
Small 10-Lead WDFN Package
Thermal Feedback Optimizing Charge Rate
RoHS Compliant and 100% Lead (Pb)-Free

Application

Digital Cameras
Cellular Phones
Personal Data Assistants (PDAs)
MP3 Players
Hand Held PCs

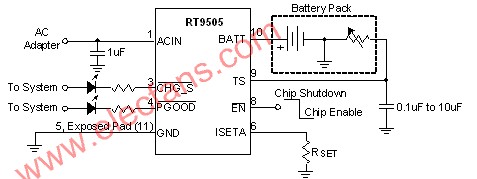

Typical Applications Circuit

RT9505规格书
