RT9503应用电路及参数资料

Fully Integrated Linear Single Cell Li-Ion Battery Charger With Power Path

 Features

Automatic Input Supplies Selection
18V Maximum Rating for AC Adapter
Integrated Selectable 100mA and 500mA USB Charge Current
Internal Integrated Power FETs
AC Adapter Power Good Status Indicator
Charge Status Indicator
External Capacitor Programmable Safety Timer
Under Voltage Protection
Over Voltage Protection
Automatic Recharge Feature
Battery Temperature Monitoring
Small 16-Lead WQFN Package
Thermal Feedback Optimizing Charge Rate
Power Path Controller
RoHS Compliant and 100% Lead (Pb)-Free

Application

Digital Cameras
Cellular Phones
PDAs and Smart Phones and MP3
Portable Instruments

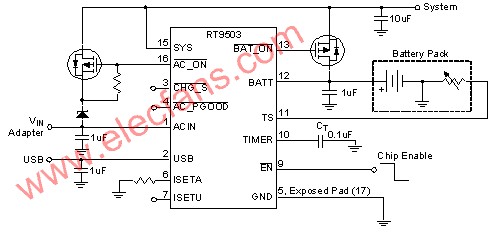

Typical Applications Circuit
