黑光发生器电路 Black Light
This circuit is a simple ultraviolate light that can be powered by a 6 volt battery or power supply that is capable of supplying 1 or more amps.

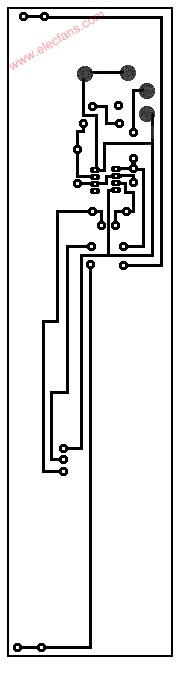

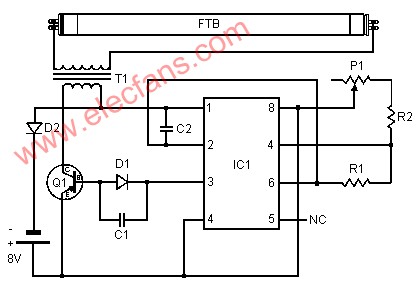

Theoritical Diagramm
PARTS
Part Total Qty. Description
| C1 | 1 | 0.0047uf Mono Capacitor |
| C2 | 1 | 0.1uf Disc Capacitor |
| D1, D2 | 2 | 1N4007 Diode |
| FTB | 1 | Filtered Blacklight Tube |
| IC1 | 1 | 555 Timer IC |
| P1 | 1 | 10k Trim Pot |
| Q1 | 1 | TIP30 PNP Power Transistor |
| R1 | 1 | 470 Ohm Resistor |
| R2 | 1 | 270 Ohm Resistor |
| T1 | 1 | Medium Yellow Inverter Transformer |
| MISC | 1 | IC Socket, Heat Sink For Q1, Screw, Nut, Wire and PC Board |
Notes:
1. P1 changes brightness of the black light tube.
